The ST Series CNC router is a high-performance cutting machine designed for makers, woodworkers, and small shops. It delivers reliable precision across wood, plastics, foam, and soft metals. Built with premium components and thoughtful engineering, it features a rigid aluminum structure with precision linear rails, low-backlash ball screws, and a beam-reinforced stand — built to deliver years of reliable performance under heavy loads. The generous 49″ cutting area fits full-width boards, and preassembled modules with full-axis alignment make setup and maintenance quick and easy.
KEY FEATURES
Material Capability:
-
- Designed for cutting foam, plastic, wood, aluminum, and copper
Motion & Precision:
-

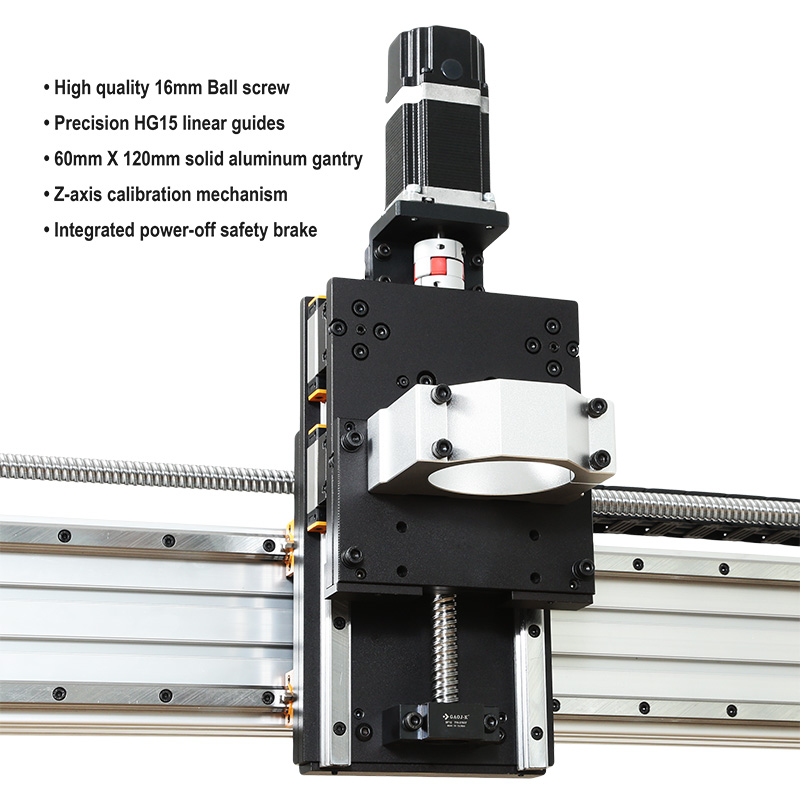

- Precision HG15 linear guides for smooth, accurate motion
- Premium 16 mm low-backlash ball screws on all axes for repeatable precision
- NEMA 23 stepper motors (2.3 Nm / 325 oz.in)
- Full-axis alignment (X, Y, Z) for squaring, tramming
- Dual Y axis inductive homing sensors enable automatic gantry squaring
- Z-axis safety brake prevents spindle drop during power loss
Structure & Build:
-
- Rigid aluminum extrusion structure with solid joint connections.
- Configurable as a benchtop unit or standalone floor model

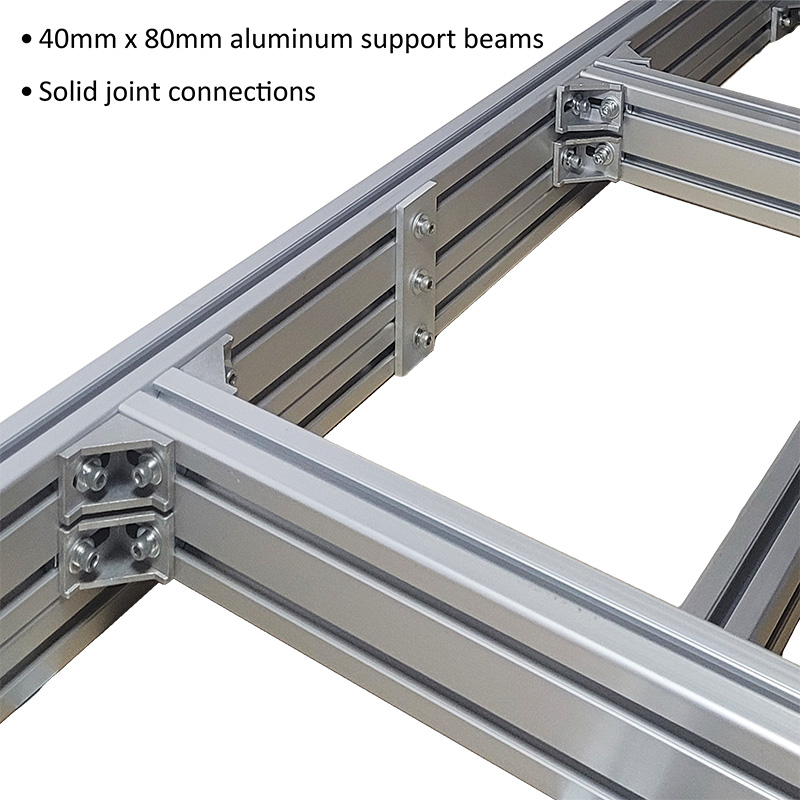

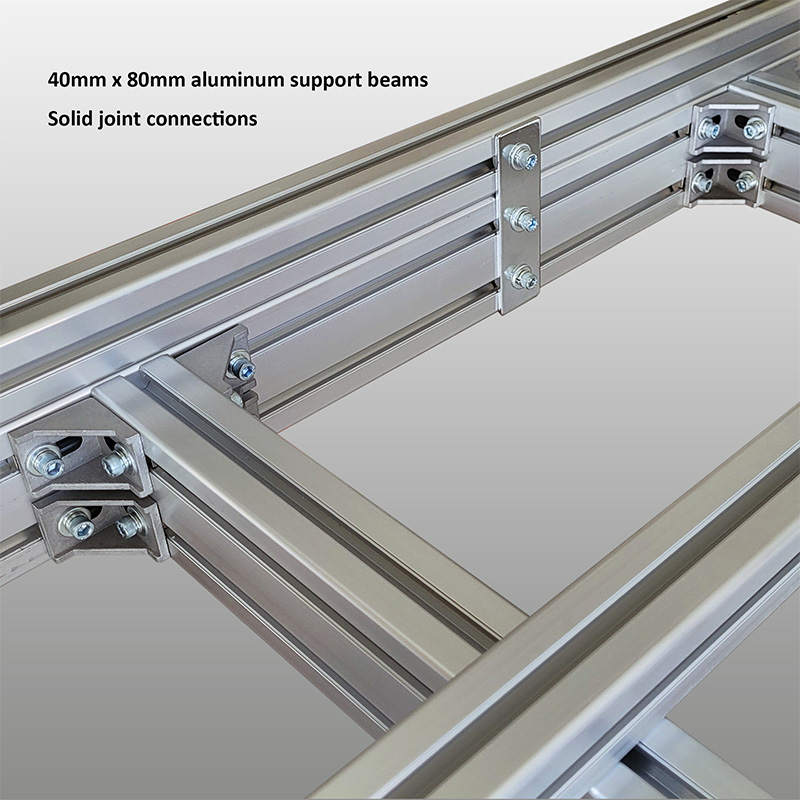

- 40 mm x 80 mm enhanced beam-supported stand for added stability
- Pre-assembled modules for faster, easier setup
Travel Speed:
-
- X, Y axes: up to 18000 mm/min (708 IPM)
- Z axis: up to 8000 mm/min (315 IPM)
Cutting Capacity:
-
- X axis: 1260 mm (49.6 in)
- Y axis: 1260 mm (49.6 in)
- Z axis: 132 mm (5.2 in)
- Z axis clearance: 130 mm (5.1 in)
Travel Resolution:
-
- 0.025mm (0.001 in) , down to 0.0125mm (0.0005 in) with micro stepping adjustment
ball screw Accuracy:
-
- ±0.05mm (±0.002 in) per 300mm (11.8 in)
VFD Enclosure and Spindle Motor:
-
- All – steel VFD enclosure with 110VAC input Vector type VFD, designed for enhanced safety and minimal electromagnetic interference
- 110V 3 phase 1.5 kW or 2.2 kW spindle with ER11 or ER20 collets, featuring premium angle – contact ball bearings for durability and optimal cutting performance
Dimensions:
-
- Machine: 1800 (W) x 1738 (D) x 632 (H) mm (70.9 x 68.4 x 24.9 in)
- Stand height: 836 mm (33 in)
- Total height with stand: 1468 mm (57.8 in)
Power & Software:
-
- Power supply: 110VAC 15-20A
- GRBL-based control, optimized for UGS software
Warranty:
-
- One year warranty
What’s Included:
-
- ST Series CNC Machine (with or without stand)

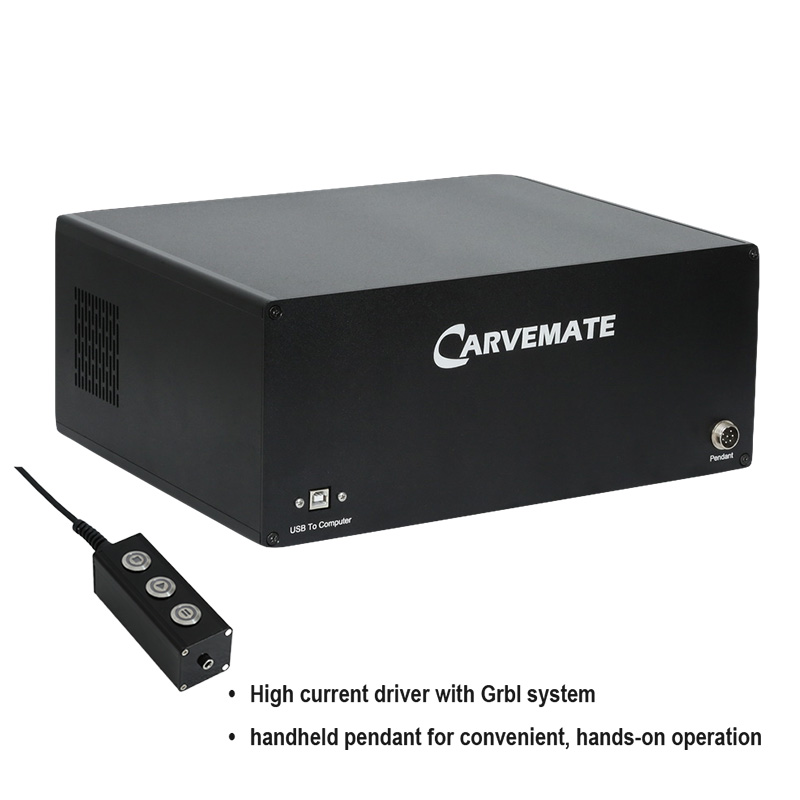

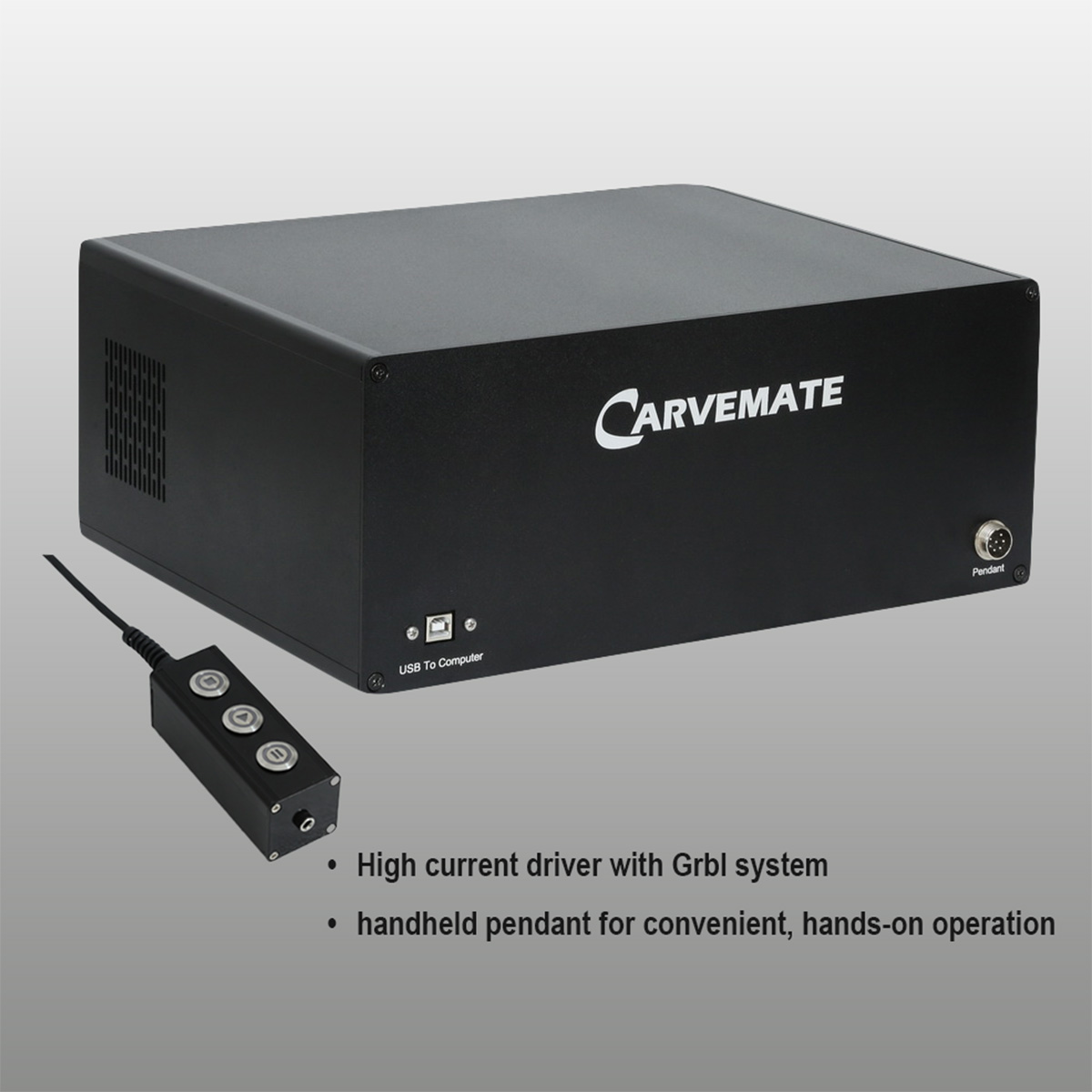

- GRBL motion controller
- Control pendant

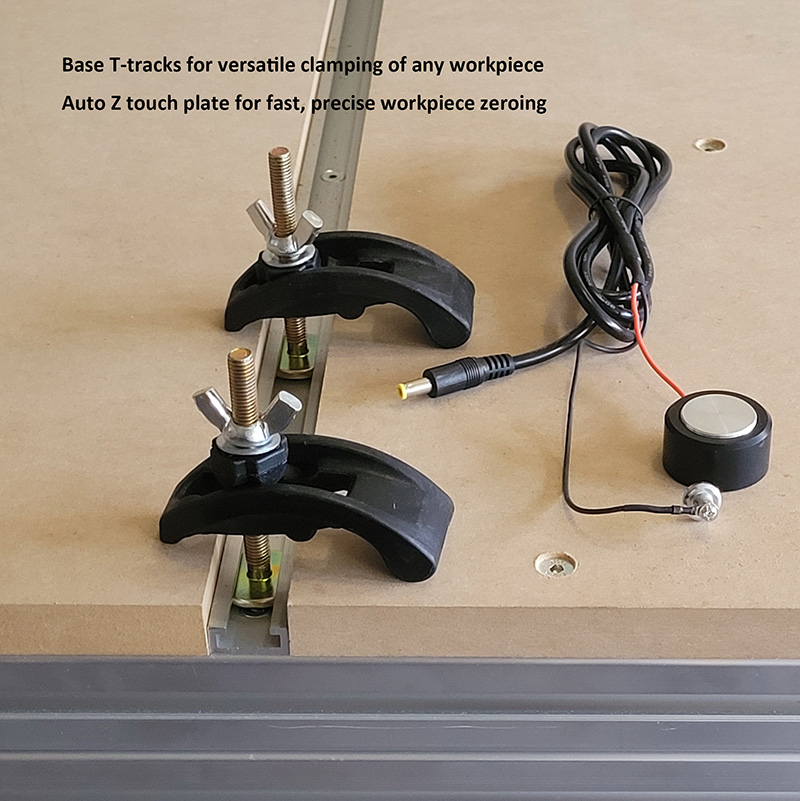

- Z axis touch probe
- Hold-Down Clamps
- Allen Key Set
Spindle Kit (Optional):
-
- 1.5 kW or 2.2 kW spindle with VFD enclosure
- ER11 (1.5 kW spindle) or ER20 (2.2 kW spindle) collets: 6 mm and 1/4″
- 1/4″ flat end mill
What’s Not Included:
-
- MDF wasteboards
- Computer to run UGS or other GRBL-compatible software
- CAD/CAM software
